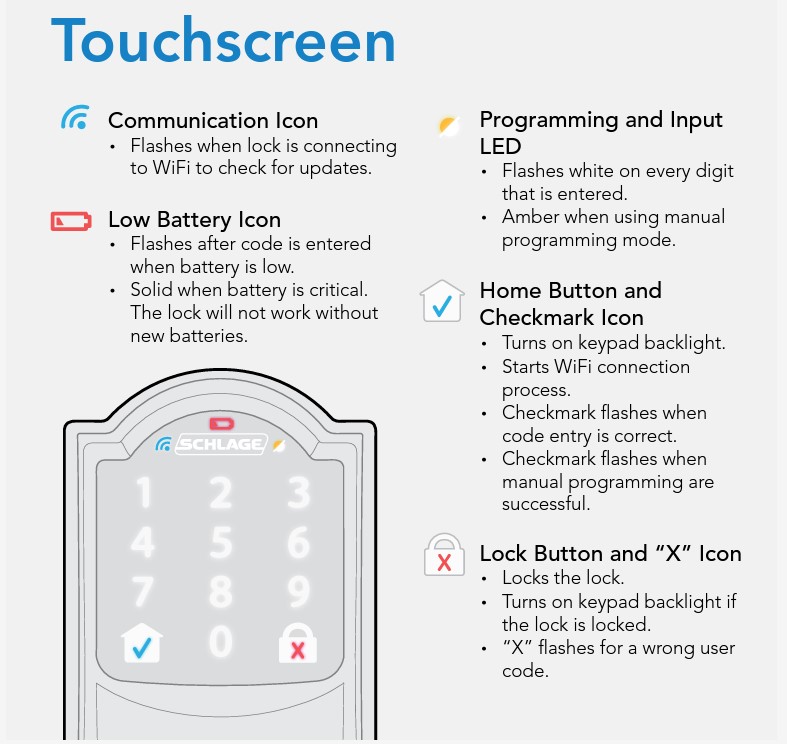

Touchscreen Icon Guide for Schlage Encode locks (BE489, FE789)

• Communication Icon:

  • Flashes when lock is connecting to WiFi to check for updates
• Low Battery Icon:

  • Flashes after code is entered when battery is low.
  • Solid when battery is critical. The lock will not work without new batteries.
• Programming and Input LED (Flashing yellow light):

  • Flashes white on every digit that is entered.
  • Amber when using manual programming mode.
• Home Button and Checkmark Icon:

  • Turns on keypad backlight.
  • Checkmark flashes when code entry is correct.
• Lock Button and "X" Icon:

  • Locks the lock
  • Turns on keypad backlight if lock is locked
  • "X" flashes for a wrong user code
